Specification
• MATERIAL: TTi
• MAIN PIPE A DIAMETER: 3.15inch(80mm)
• MAIN PIPE THICKNESS: 1.0mm
• SILENCER DIAMETER: 5.98inch(152mm)
• SILENCER THICKNESS: 1.0mm
• EXIT DIAMETER: 4.53inch(115mm)
• EXIT THICKNESS: 1.0mm
• FLANGE THICKNESS: 8.0mm
• WEIGHT: 15.43lbs(7.0kg)

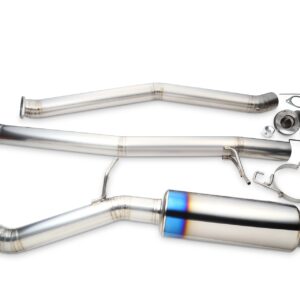

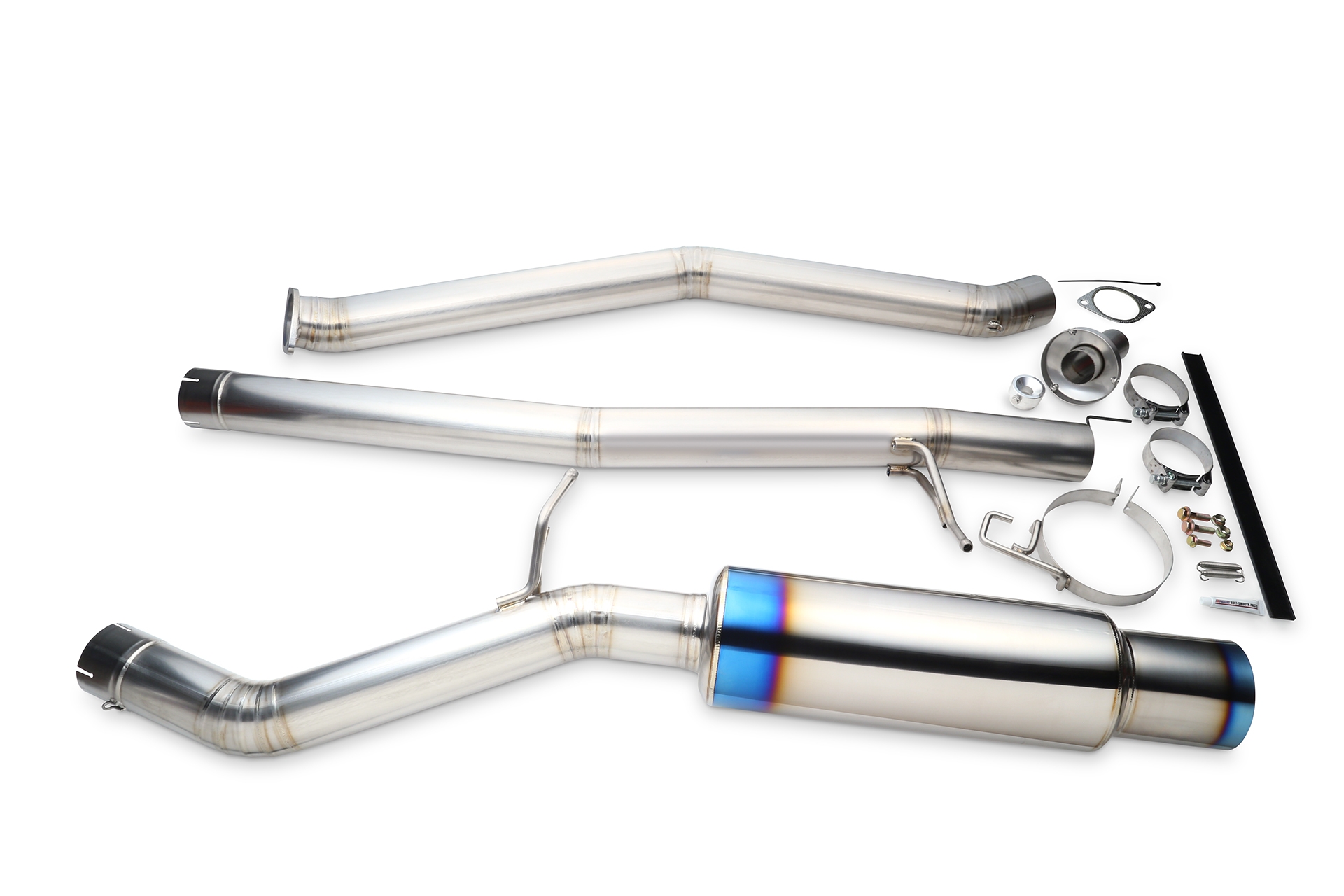

Kit Content
MAIN PIPE A (1)
MAIN PIPE B (1)
SILENCER (1)
GASKET (1)
FLANGE BOLT M10 L=35mm P=1.25mm (2)
FLANGE NUT M10 P=1.25mm (2)
CLAMP BAND (2)
SPRING (2)
SILENCER BAND (1)
SILENCER BAND RUBBER (1)
FLANGE BOLT M8 L=25mm P=1.25mm (1)
FLANGE NUT M8 P=1.25mm (1)
SOUND REDUCER ver.2 (1)
BUTTON BOLT (3)
FLANGE NUT (3)
ALLEN KEY (1)
ZIP TIE (1)
BOLT SMOOTH PASTE (1)
