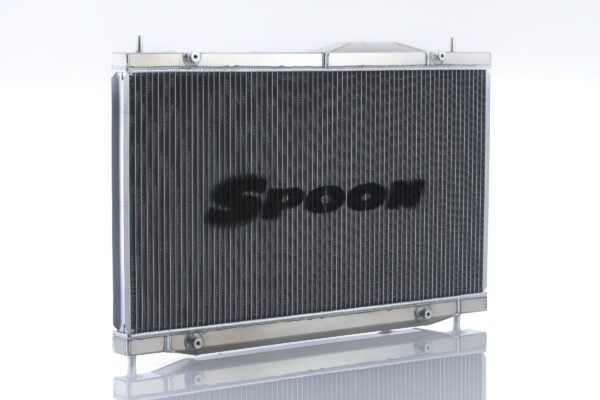

Spoon Sports Aluminium Radiator – Honda Civic FK8 Type R

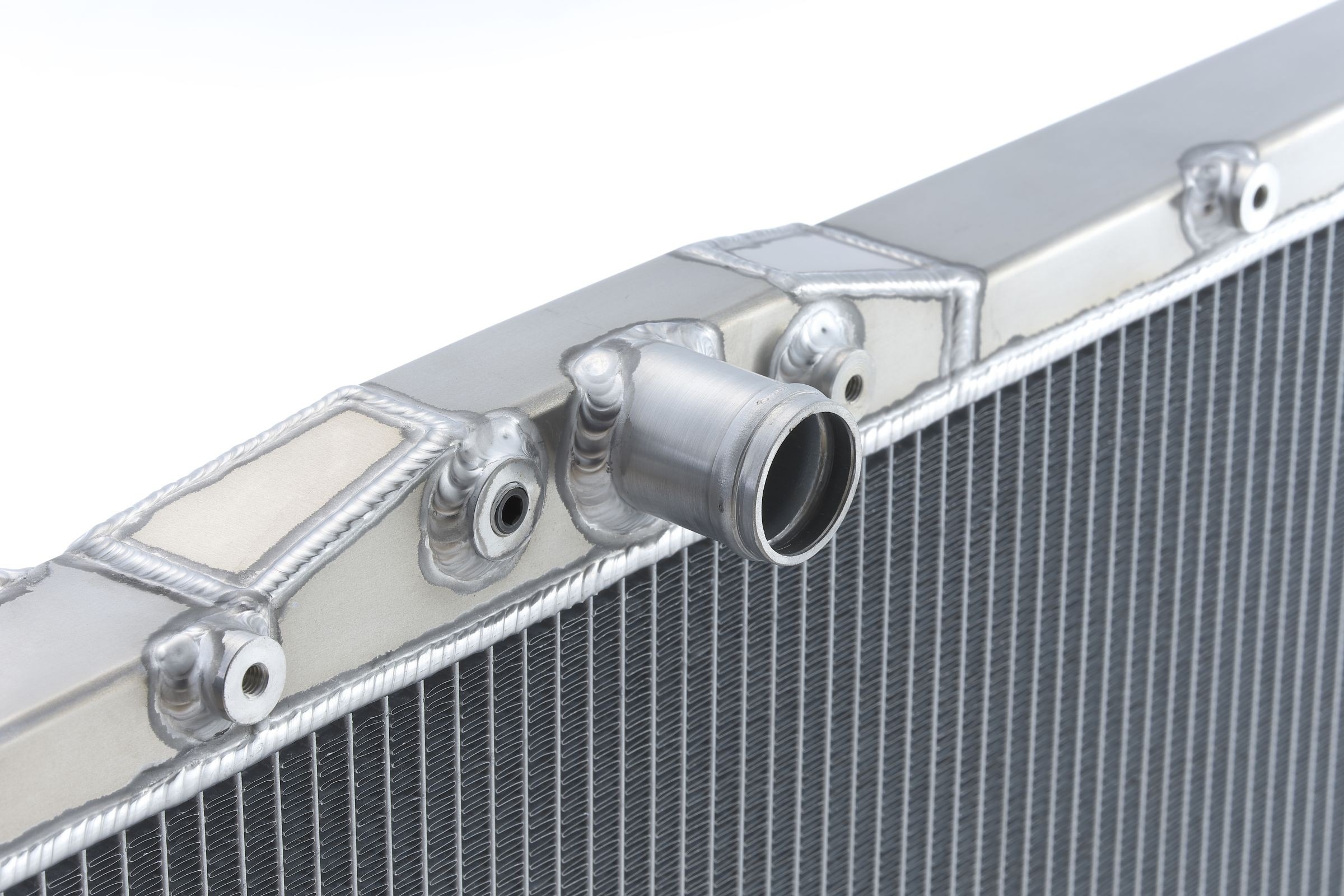

Although the core thickness of FK8 pure radiator is 27 mm, the water temperature during sports driving soon exceeds 100 ° C, which makes it difficult to make continuous running. Therefore SPOON pursued the optimum core thickness and fin shape and repeated the test & try in order to continuously demonstrate the original performance of the K20C VTEC TURBO engine. Generally, as the thickness of the core is thicker, the cooling efficiency seems to rise, but in fact the wind becomes hard to escape if it becomes too thick, not only the efficiency decreases, but also the weight of the radiator itself increases. The aluminum radiator made by SPOON adopts a highly heat-dissipating fin shape, and by improving the core thickness to 36 mm, cooling efficiency has been dramatically improved. Genuine fan shroud and condenser can also be installed, PT 1/8 boss for the rear attachment sensor has also been added.
