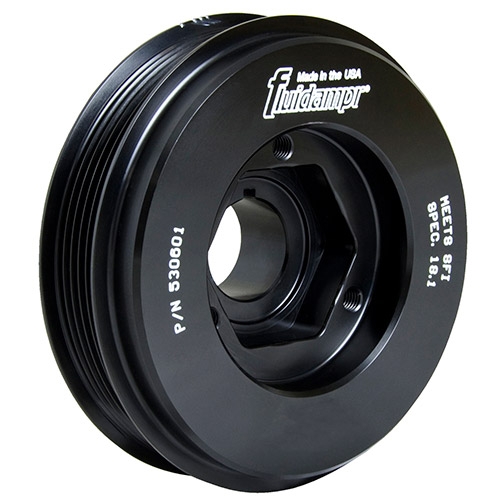

Using only three parts (a laser-welded sealed housing, an internal inertia ring, and highly viscous silicone fluid between the two), SFI-approved Fluidampr harmonic dampers can control all crankshaft vibration–not just a limited frequency range. As a result, you get reduced wear on the main bearings and timing gear, more stable valvetrain operation, and less chance of crank failure.
Bore Diameter 1.1823″
Degree Marking Range TDC. BDC. 7, 9, 11, 15 deg
Degree Markings Engraved
Engine Balance Internal
Finish Black Zinc
Keyway Yes
Length 2.056″
Material Steel
Mounting Hardware Included No
Outside Diameter 5-1/2″
Safety Rating SFI 18.1
Weight / Rotating Weight 5.8 lbs / 3.9 lbs
